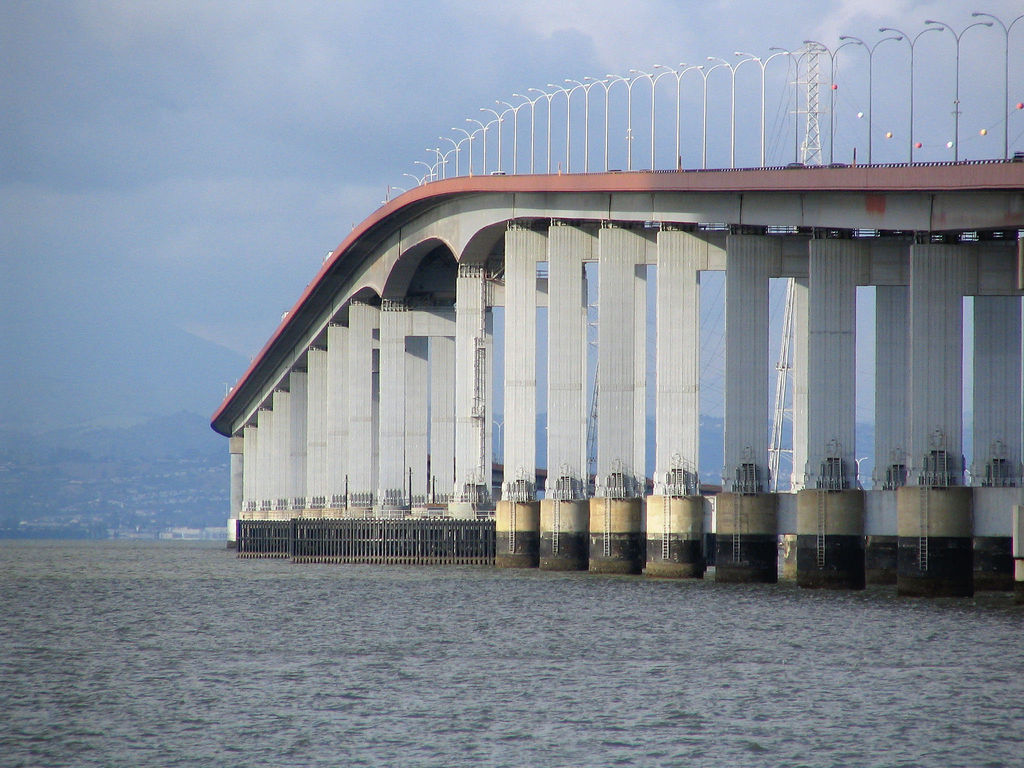

San Mateo Bridge, Highrise Section, San Francisco Bay Area
UC Berkeley Professor Ed Wilson raised a pointed concern about the Response Spectrum Method (RSM) that structural engineers should take seriously. In his 2015 note, he described the San Mateo Bridge retrofit as a revealing case study: RSM analysis indicated that numerous members required strengthening, but when time-history analyses were run using the actual ground motion records that generated the design spectra, the maximum demand-to-capacity ratios dropped by roughly a factor of three.
In seismic design, the demand-to-capacity ratio (DCR) is a fundamental metric for evaluating structural adequacy under earthquake loading. The demand represents the internal forces or deformations imposed on a structural element by the design seismic event — typically derived from a response spectrum analysis or nonlinear time-history analysis — while the capacity reflects the element’s ability to resist those effects without failure or unacceptable damage. A DCR less than or equal to 1.0 indicates that the element has sufficient strength or ductility to accommodate the seismic demand, whereas a DCR exceeding 1.0 signals overstress or exceedance of deformation limits, requiring redesign or retrofit.
In linear procedures, DCRs are computed from elastic force demands divided by expected member strengths, with acceptance criteria adjusted by modification factors (such as the m-factors in ASCE 41) that account for the ductility and deformation capacity of the element type. In nonlinear procedures, the ratio shifts toward deformation-based metrics — comparing inelastic rotation or drift demands against component deformation capacities defined at IO, LS, or CP performance levels. DCRs also inform the identification of weak stories, plan irregularities, and critical load paths, making them a practical diagnostic tool throughout both new design and existing building evaluation workflows.
The implication is significant — RSM’s modal combination rules, even with Complete Quadratic Combination (CQC), produce an envelope of peak values that cannot occur simultaneously in a real structure. For a retrofit program, that over-conservatism doesn’t just affect paper calculations; it drives steel, labor, and project cost. Wilson’s conclusion was that after more than 50 years, the RSM had outlived its justification and that time-history analysis should replace it as standard practice.
The case is compelling, but the transition raises its own challenges — and it’s worth asking whether supplemental intensity measures and testing methods could help bridge the gap, particularly for practitioners not yet equipped to run full nonlinear time-history workflows.
Four worth highlighting:
Pseudo Velocity Response Spectrum (PVRS) deserves more attention than it gets in structural practice. Unlike the standard acceleration response spectrum, the pseudo velocity representation plots on a four-coordinate (tripartite) log-log scale that simultaneously displays pseudo acceleration, pseudo velocity, and displacement as a function of frequency. This makes the energy content of a ground motion immediately readable across the full frequency range — stiff structures, flexible structures, and rigid-body behavior are all visible in a single plot. The PVRS also has a direct physical interpretation: pseudo velocity is proportional to the peak strain energy stored in the SDOF oscillator, making it a more meaningful descriptor of damage potential than spectral acceleration alone. The case for velocity-based spectra better characterizing structural demand for mid-period structures has only strengthened over time.
Arias Intensity (AI) captures what RSM entirely ignores: cumulative energy input. Defined as the time-integral of squared acceleration, AI reflects both amplitude and duration. Two ground motions can match the same design spectrum yet have very different Arias Intensities — and for structures with degrading stiffness or strength, that difference matters enormously. AI correlates well with cumulative damage, liquefaction potential, and permanent deformation. Used alongside RSM, it can flag cases where a long-duration record would drive significantly more damage than the spectral shape alone suggests — a practical trigger for requiring time-history follow-up, much as Wilson’s San Mateo analysis eventually required.
Fatigue Damage Spectrum (FDS) goes further still. Rather than characterizing the ground motion by a single peak response per frequency, FDS accumulates cycle counts across the response history using a rainflow-counting approach and applies a Miner’s rule damage model. The result is a frequency-dependent damage index that reflects both the number and amplitude of response cycles — something neither RSM nor a simple Arias Intensity scalar can provide. FDS is well-established in mechanical shock and vibration testing (MIL-STD-810, IEST protocols), and its extension to seismic analysis of cycle-sensitive structural components — bolted connections, reinforced concrete members, base isolators — is a natural and underexplored direction.
Time Waveform Replication (TWR) brings the argument full circle to physical testing. Where Wilson advocates replacing RSM with time-history analysis in simulation, TWR does the equivalent on the shaker table: rather than driving a test article with a synthesized random or swept-sine signal shaped to match a target spectrum, TWR iteratively adjusts the drive signal until the table output replicates a target acceleration time history — typically a recorded earthquake ground motion or a simulation-derived base input. The result is that the test article experiences the actual temporal sequence of loading, including realistic phasing between frequency components, true peak-to-RMS ratios, and the cumulative cycle history that determines fatigue life. This is directly relevant to Wilson’s objection: an RSM-designed structure tested only to a shock response spectrum may never experience the correlated multi-cycle loading that a real earthquake imposes. TWR closes that gap experimentally. Combined with FDS verification — confirming that the replicated waveform delivers the intended fatigue damage across the frequency range — TWR provides a physically rigorous complement to both simulation-based time-history analysis and the supplemental intensity measures described above.
None of these replaces the response spectrum for establishing peak demand in design. But together they address Wilson’s core objection: RSM delivers an envelope of maximums with no information about energy content, duration, or cumulative damage capacity. A reasonable framework would use RSM for preliminary design and code compliance, PVRS to better characterize energy demand across the frequency range, AI and FDS to identify duration- and fatigue-sensitive cases, TWR for physical qualification testing where realistic waveform fidelity matters, and full time-history analysis where supplemental measures signal that peak-only characterization is insufficient. That is a more targeted path to Wilson’s goal than retiring RSM all at once.
See also: An Alternative Method for Shock Testing
– Tom Irvine
