Introduction

The modern high-bypass turbofan represents one of the most demanding optimization problems in structural engineering. The primary fan is the largest rotating assembly on an aircraft, swallowing tens of thousands of cubic feet of turbulent atmosphere per second. Every ounce of this rotating mass must be structurally sustained across broad thermal and rotational envelopes, and fully restrained by the containment system during catastrophic failure events such as a Fan Blade-Out (FBO).

For decades, titanium alloys (specifically Ti-6Al-4V) dominated the fan stage due to their high yield strength, ductile energy absorption, and fatigue limits. However, the physical bounds of metallic specific strength ($\sigma/\rho$) constrained high-bypass engine scaling. Over the last thirty years, Carbon Fiber Reinforced Polymers (CFRP) have systematically reshaped this trade space by altering fundamental centrifugal mechanics, structural dynamics, and containment physics.

Why Composites in the Fan Stage

Specific Strength, Modulus, and Density

Standard aerospace-grade titanium alloy Ti-6Al-4V exhibits a density of approximately $\rho = 4430\text{ kg/m}^3$ ($0.16\text{ lbm/in}^3$) with an ultimate tensile strength of $\approx 950-1050\text{ MPa}$. In contrast, a modern toughened intermediate-modulus epoxy CFRP laminate typically has a density of $\rho = 1550 – 1600\text{ kg/m}^3$—roughly 35% that of titanium.

While isotropic metals present uniform properties in all directions, unidirectional CFRP plies provide fiber-direction tensile moduli exceeding $160\text{ GPa}$ and tensile strengths exceeding $2500\text{ MPa}$. When tailored into a balanced multi-directional layup, the resulting structural component delivers superior specific stiffness ($E/\rho$) and specific strength ($\sigma/\rho$) compared to forged titanium.

The Cascading Centrifugal Mechanics

Centrifugal acceleration generates the primary static loading state within a rotating fan blade. Consider a differential mass element $dm$ located at radial distance $r$, rotating at angular velocity $\omega$. The centrifugal force $dF_c$ acting on the element is:

Integrating from a given radius $r$ to the tip radius $R_{\text{tip}}$ yields the total centrifugal tensile stress $\sigma_c(r)$ across cross-sectional area $A(r)$:

Notice that density $\rho$ directly scales the cross-sectional stress throughout the blade profile. Reducing $\rho$ by 65% fundamentally alters the downstream structural architecture through a multi-tiered compounding effect:

1. Blade Root Sizing: Lower total mass directly decreases the root centrifugal pull force, reducing mechanical dovetail/pin attachment dimensions.
2. Disk Rim Optimization: The fan disk sizing is dominated by rim hoop stress driven by blade pull. Lower blade mass permits a significantly lighter disk web and bore.
3. FBO Energy Reduction: In a fan blade-out event, kinetic energy $E_k = \frac{1}{2}I\omega^2 + \frac{1}{2}mv^2$ scales linearly with blade mass $m$. A lighter blade dramatically reduces the impact kinetic energy that must be absorbed by the containment casing.
4. Mount and Pylon Loads: Reduced rotating unbalance mass minimizes the dynamic transient and windmilling loads transmitted through engine mounts, pylon structures, and wing boxes after an FBO event.
5. Bypass Ratio Expansion: The saved structural mass budget can be directly reinvested into expanding the fan tip diameter $D_{\text{fan}}$, raising the bypass ratio ($\text{BPR} > 10-12$) and boosting propulsive efficiency ($\eta_p$).

Anisotropy as an Aeroelastic Tuning Variable

An isotropic metallic blade limits the designer to geometric manipulations (taper, sweep, chord thickness) to adjust structural frequencies. In contrast, laminated CFRP blades offer a directionally tailored stiffness tensor $\mathbf{Q}_{ij}$. By adjusting ply orientation angles $\theta_k$, structural dynamicists can purposefully configure the blade’s constitutive behavior:

This anisotropic tailoring capability provides explicit control over key dynamic behaviors:

• Engine Order ($EO$) Avoidance: Modal frequencies (First Flap $1F$, First Torsion $1T$, Edgewise $1E$) can be tuned away from engine speed harmonics ($1X, 2X, 3X$) on the Campbell diagram to prevent sustained resonant fatigue.
• Bend-Twist Coupling ($\alpha_{\text{flex-tors}}$): Off-axis ply layups generate elastic coupling between bending deformations and torsional rotation. As aerodynamic loading or centrifugal untwist occurs, blade pitch dynamically adjusts, widening flutter margins across sub-sonic and trans-sonic flight regimes.

Production Engines Overview

The Impact Problem & Mitigation Mechanisms

Unlike internal turbofan components, the fan stage operates directly exposed to foreign object debris (FOD), ice shed, hail, and high-velocity bird strikes (regulated under FAR/CS 33.76). Pure polymer matrix composites exhibit inherent structural vulnerabilities under extreme impact loads:

• Low Interlaminar Shear Strength (ILSS): Matrix-dominated out-of-plane strength allows high-velocity transverse impacts to induce internal shear failure and extensive delamination between plies.
• Barely Visible Impact Damage (BVID): An impact can create catastrophic internal delamination and sub-surface matrix cracking without displaying clear surface ruptures, leading to severe Compression-After-Impact (CAI) strength knockdowns (often 40% to 60%).
• Brittle Fracture Mechanics: Unlike metallic alloys that absorb kinetic energy through plastic deformation ($\int \sigma \, d\epsilon$), composites absorb energy via brittle matrix cracking, ply delamination, and fiber breakage.

Fatigue and Vibration Mechanics

Fiber-Dominated High-Cycle Fatigue (HCF)

Under axial load states dominated by fiber orientation, unidirectional CFRP exhibits outstanding High-Cycle Fatigue (HCF) behavior. The characteristic $S\text{-}N$ curve is significantly flatter than that of structural metals. The fatigue limit for fiber-dominated CFRP can reach $60\%\text{–}70\%$ of its static ultimate tensile strength, compared to approximately $40\%\text{–}50\%$ for Ti-6Al-4V.

Traditional metal fatigue damage follows single-dominant crack propagation governed by Paris’ Law:

Conversely, composites accumulate fatigue damage through distributed micro-mechanisms: matrix micro-cracking, transverse ply cracking, interfacial debonding, and localized delamination growth. Instead of a discrete crack length $a$, fatigue degradation manifests as a progressive reduction in overall structural stiffness $E(N)$.

Material Damping and Resonant Response

Aerodynamic excitation (inlet distortion, crosswinds, and stator wakes) drives steady-state vibration in the fan assembly. The dynamic response amplitude at resonance is inversely proportional to total system damping $\eta_{\text{total}}$:

The inherent material loss factor ($\eta$) of CFRP ($\eta \approx 0.005 – 0.015$) is roughly an order of magnitude higher than that of titanium ($\eta \approx 0.0005 – 0.002$). This elevated viscoelastic dissipation helps suppress resonant vibration peaks across high-frequency engine orders.

Fan Cases and Soft-Wall Containment Physics

Containment cases traditionally relied on heavy “hard-wall” metallic rings (forged steel or thick titanium) designed to resist penetration through shear punch and plastic deformation. Modern engines utilize “soft-wall” composite fan cases manufactured from braided or 3D-woven carbon/epoxy or Kevlar wrap structures.

Soft-wall containment operates on distributed energy dissipation mechanics:

Upon blade impact, the energy is absorbed as the composite casing undergoes large membrane deflections, extensive interlaminar delamination, fiber tensile fracture, and dry friction between expanding debris layers. This distributed energy absorption allows for drastic weight reductions in large-diameter engine nacelles.

Comparative Structural Trade Analysis

Conclusion

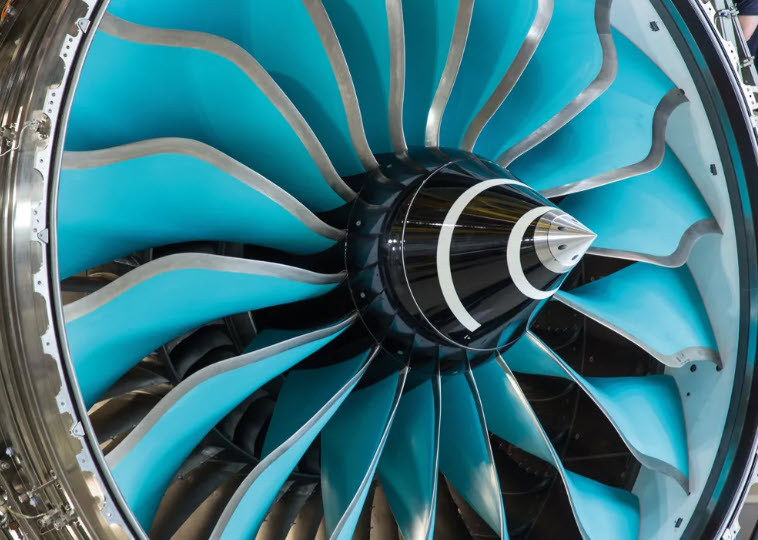

The successful integration of composite materials into turbofan engine fan stages represents a triumph of system-level structural synthesis. A pure polymer matrix composite is fundamentally ill-suited for the harsh impact environment of an engine inlet. However, by combining high-modulus, low-density anisotropic carbon laminates with ductile metallic leading edges, aerospace engineers transformed a material vulnerability into a dominant structural advantage.

Through 30 years and over 300 million flight hours, composite fan systems have demonstrated that light, highly tailored structural components not only withstand complex centrifugal, dynamic, and impact loads, but also enable the wide-diameter, high-bypass ratio engines that define modern efficient aviation.
