Incident Summary
On the morning of July 7, 2026, construction workers on the 21st floor of 235 East 42nd Street in Midtown Manhattan discovered structural steel columns buckling before their eyes, along with bending box beams, cracks, and sagging floors. The 37-story tower — the former global headquarters of Pfizer, a 1970s-era steel-framed office building one block from the Chrysler Building — is midway through conversion into roughly 1,600 residential apartments. The fire department’s first call, just before 8 a.m., reported bricks falling from the building.
The site and several neighboring buildings were evacuated, streets were closed, and officials warned of a possible partial collapse; the fire department noted that the building continued to move after crews arrived, and that a steel-framed structure of this type was more likely to suffer a localized internal collapse than a total one. Emergency crews installed temporary jacks at the weakest points, followed by new steel shoring extending across floors 18 through 23. By the following day the city’s Department of Buildings reported no further movement, and most evacuation orders were lifted.
The root cause is under investigation, and the city has ordered a third-party forensic evaluation including document review and witness interviews. The developer has stated its belief that column supports were carrying too much weight, with the added load of the project’s new upper floors as a suspected contributor, while characterizing the exact reason as still to be determined. That account should be treated as a preliminary hypothesis, not a finding. No injuries were reported — a credit to the steamfitters who spotted the distress and helped clear the floor.
Whatever the investigation ultimately concludes, the incident is a live illustration of the most unforgiving failure mode in structural engineering: column buckling. This post reviews the mechanics.
Buckling Is a Stability Failure, Not a Strength Failure
A column can fail in two fundamentally different ways. It can crush, when the compressive stress reaches the material strength — a failure of strength. Or it can buckle, bowing sideways under a load well below the crushing load — a failure of stability. Buckling is a bifurcation: below the critical load the straight configuration is stable, and at the critical load the straight configuration abruptly ceases to be, with essentially no warning in the load path leading up to it. This is why buckling events are so often described by witnesses as sudden. The steel did not weaken; the equilibrium did.
The classical result is Euler’s critical load for an ideal elastic column:
\[ P_{cr} = \frac{\pi^{2} E I}{(K L)^{2}} \]where \(E\) is the elastic modulus, \(I\) is the area moment of inertia of the cross-section about the weak axis, \(L\) is the column length, and \(K\) is the effective-length factor set by the end restraint conditions. Dividing by area and introducing the radius of gyration \(r = \sqrt{I/A}\) gives the critical stress in terms of the slenderness ratio \(KL/r\):
\[ \sigma_{cr} = \frac{\pi^{2} E}{(KL/r)^{2}} \]Two features of these equations deserve emphasis. First, the critical load depends on stiffness \(E\), not strength — a higher-strength steel of the same modulus buckles at the same load. Second, the effective length enters as a square. Double the unbraced length of a column and its elastic buckling capacity falls by a factor of four.
| End conditions | Theoretical \(K\) | Design (recommended) \(K\) |
|---|---|---|
| Fixed–fixed | 0.5 | 0.65 |
| Fixed–pinned | 0.7 | 0.80 |
| Pinned–pinned | 1.0 | 1.0 |
| Fixed–free (flagpole) | 2.0 | 2.1 |
For stocky columns, the Euler stress exceeds the yield strength and the failure becomes inelastic; design practice transitions to an inelastic column curve, such as the classical Johnson parabola,
\[ \sigma_{cr} = \sigma_{y}\left[ 1 – \frac{\sigma_{y}\,(KL/r)^{2}}{4\pi^{2}E} \right] \]or the equivalent AISC column-strength curves, which blend the elastic and inelastic regimes and account for residual stresses and initial crookedness.
Real Columns: Eccentricity and Imperfection
Real columns are never perfectly straight, and real loads are never perfectly centered. An eccentricity \(e\) turns the bifurcation into a smoothly amplifying bow, described by the secant formula for the peak compressive stress:

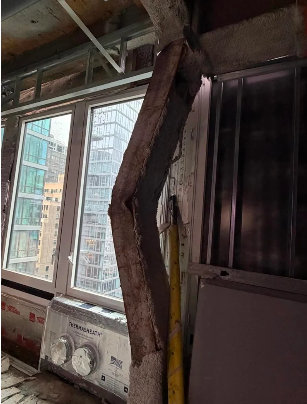

\[ \sigma_{max} = \frac{P}{A}\left[ 1 + \frac{ec}{r^{2}} \sec\!\left( \frac{KL}{2r}\sqrt{\frac{P}{EA}} \right) \right] \]As \(P\) approaches the Euler load, the secant term grows rapidly — small imperfections are amplified into large lateral deflections. A column that appears visibly bent, as in the published photographs from the 21st floor, is a column operating in this amplification regime: it has not yet fully collapsed, but its remaining margin is small and falling, which is why the emergency priority was to get jacks under the load immediately.
Steel box columns and built-up sections add a second mode: local buckling of the thin plate walls. The elastic critical stress of a plate element of width \(b\) and thickness \(t\) is:
\[ \sigma_{cr} = \frac{k\,\pi^{2} E}{12\,(1-\nu^{2})} \left( \frac{t}{b} \right)^{2} \]where \(k\) depends on edge support and loading. Local plate buckling reduces the effective section, which in turn lowers the global buckling resistance — the two modes interact, and the interaction is always in the unfavorable direction.
Load Redistribution: Why One Column’s Problem Is Its Neighbors’ Problem
A steel frame is statically indeterminate, and that redundancy is both its salvation and its trap. When one column softens and sheds load, the girders and slabs redistribute that load to the adjacent columns — which are now carrying more than their design share and are themselves closer to their critical loads. If the neighbors have margin, the structure finds a new equilibrium and stands, visibly distressed, exactly as this building did. If they do not, the failure propagates column to column and the result is a progressive, disproportionate collapse. The reported observation that the building “continued to move” during the first hours is consistent with this redistribution process still seeking equilibrium — and it is why shoring was installed not just at the damaged columns but across at least six floors, to intercept the redistributed load paths above and below.
Conversion-Specific Risk Factors
Office-to-residential conversions are structurally invasive in ways that bear directly on column stability. The investigation will determine which, if any, of these applied here; the list below is general.
| Conversion activity | Effect on the governing equation |
|---|---|
| Added stories or rooftop overbuild | Increases \(P\) on the columns below, consuming margin against \(P_{cr}\) |
| Cutting floor slabs (light wells, new stairs, MEP risers) | Removes lateral bracing points; increases unbraced length \(L\), and \(P_{cr}\) falls with \(1/L^{2}\) |
| Removing walls or diaphragm sections | Softens end restraint; effective-length factor \(K\) increases toward the pinned or free condition |
| Temporary column-transfer or reinforcement work | During the transfer, the load path may pass through temporary elements with less capacity than the permanent design |
| Material staging (stacked drywall, block, equipment) | Concentrated live loads on individual bays, potentially eccentric to the column axes |
| New heavy systems (amenity pools, green roofs, façade replacement) | Permanent dead-load increase on a 1970s frame designed to office criteria |
Note that several of these mechanisms act on the denominator of the Euler equation rather than the numerator of the demand. A column that gains 20 percent more load has lost 17 percent of its margin; a column whose unbraced length grows by 40 percent has lost half of its elastic buckling capacity. Slab cuts and bracing removal are, pound for pound, more dangerous to a column than added weight — and far less visible on a loading tally sheet.
Emergency Shoring Mechanics
The stabilization sequence reported at this site follows standard urban search-and-rescue and forensic-engineering practice. Hydraulic or screw jacks are placed first to arrest movement and pick up a share of the load from the damaged columns; these are fast to deploy but are temporary by nature. New steel posts and struts are then installed to create a redundant, permanent-enough load path around the damaged members, extended several floors above and below so that the redistributed forces are intercepted rather than merely relocated. Throughout, the structure is monitored for movement from inside and outside — survey targets, crack gauges, and increasingly real-time sensing — because the shoring operation itself perturbs the load paths, and the confirmation that matters is measured stillness, not calculated capacity. The reports that the building had not moved since the shoring went in were the real all-clear signal.
Closing Thoughts
Buckling gives little warning and forgives nothing, because it is a failure of geometry and stiffness rather than of material strength. The margin against it is spent invisibly — by an extra story here, a slab opening there, a stack of drywall in the wrong bay — until the secant amplification takes over and a straight column becomes a bent one in seconds. The forensic evaluation of 235 East 42nd Street will take months, and the eventual report will be worth reading closely, particularly for what it says about how load and bracing were managed during the conversion sequence. In the meantime, the incident is a reminder that in renovation work the structure that matters is not the one on the original drawings, nor the one on the final drawings, but every intermediate configuration in between — and each of those configurations must satisfy Euler on its own.
I will follow the investigation and post an update when the forensic findings are released.
Sources
- NBC News — Buckling Manhattan high-rise deemed stable after evacuations
- CNN — Stabilization work continues on buckled columns at NYC high-rise
- NBC New York — Photos from inside the 21st floor
- ABC7 NY — Building deemed stable as investigation continues
For related material, see Tom’s ebooks, available free of charge. And consider enrolling in the VibrationData professional development course series, which begins each September.
by Tom Irvine
