NASA released Revision B of NASA-STD-5002, Load Analyses of Spacecraft and Payloads, on March 10, 2026. The standard supersedes NASA-STD-5002A and defines accepted NASA practices and requirements for load analyses used in the design, development, verification, and testing of spacecraft and payload structures. Although the standard is written for NASA programs and projects, it is also useful guidance for contractors, test engineers, structural analysts, and payload developers who work with coupled loads analysis, random vibration, acoustic loading, model correlation, and qualification testing.
One important change in Revision B is the broader scope. The standard now explicitly covers both spacecraft and payload hardware, including crewed, uncrewed, and potentially reusable spacecraft. It does not apply to launch vehicles themselves, sounding rocket payloads, aircraft, balloons, or ground support equipment, but it does address the spacecraft and payload load environments from assembly and transportation through launch, ascent, space operations, extraterrestrial operations, descent, and landing.
The standard emphasizes that loads analysis is not a one-time calculation. It is an iterative process that evolves as the design matures. Preliminary loads are used for early sizing of primary structure, secondary structure, and components. These loads are intentionally conservative because early models, forcing functions, boundary conditions, and interface definitions are often incomplete. Later load cycles should refine the predictions as better finite element models, test data, launch vehicle interface data, and flight experience become available.
A major theme is dynamic model fidelity. NASA-STD-5002B requires spacecraft and payload models to have enough resolution to capture the important dynamic behavior within the frequency range of the analysis. For random vibration load predictions, the standard states that this method should only be used when the dynamic model has adequate fidelity in the frequency range of interest. The document also recommends sufficient mesh density and modal density near the upper frequency bound. For coupled loads analysis, subsystem resonances and system modes should typically be modeled up to at least 1.5 times the cutoff frequency of the load analysis.
Revision B also strengthens the treatment of reduced finite element models. If dynamic reduction is used, the reduced FEM must retain the relevant dynamic characteristics through the required frequency range. The updated standard also calls for residual vectors or a mode acceleration approach to account for the static-elastic contribution of modes above the model cutoff frequency. This is an important point because truncated modes can still contribute to interface forces, member loads, and displacement-dependent responses.
Another notable addition is explicit treatment of nonlinear hardware. Revision B adds a requirement that the load model or set of models conservatively bound the response of nonlinear hardware. Nonlinear behavior may be modeled directly, or bounded by a suitable set of linear models. This is especially relevant for deployables, mechanisms, isolators, joints, dampers, tanks, landing systems, and other hardware where stiffness, damping, contact, preload, or configuration may change with load level.

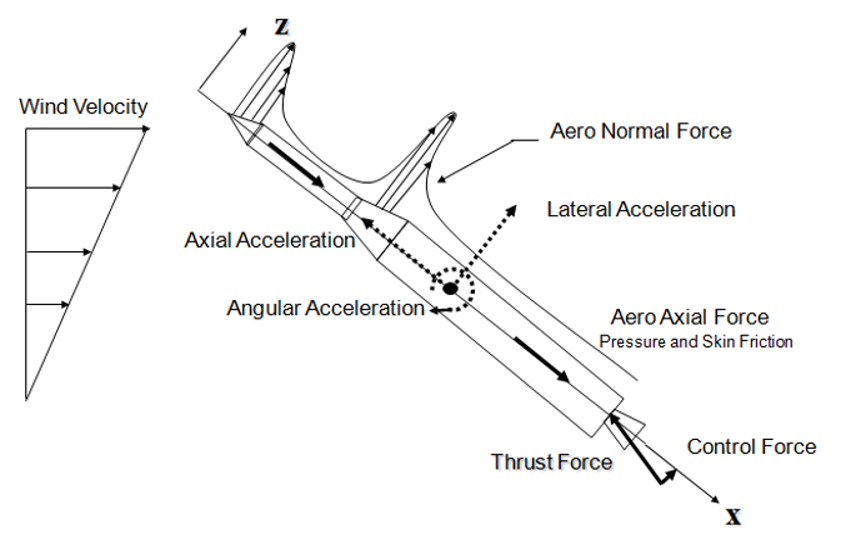

For random vibration, the standard summarizes the familiar PSD-based approach. Random vibration environments are used when the forcing is governed by non-deterministic effects such as high-frequency engine thrust oscillation, aerodynamic buffeting, or acoustic pressure on payload surfaces. The response is treated statistically; PSD functions are used to describe the input and response, and RMS response quantities are computed from those PSDs. Random vibration limit loads are commonly taken as 3-sigma loads, although the required multiplier can depend on the assumed statistical distribution and the required enclosure/confidence level.

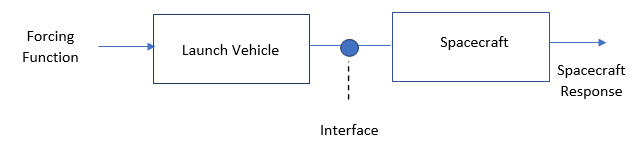

NASA-STD-5002B also addresses how random vibration loads are combined with low-frequency transient and quasi-static loads. For liftoff, quasi-static loads, low-frequency transient loads, and random vibration/acoustic limit loads must be combined using an approach approved by the delegated Technical Authority. The standard notes that maximum low-frequency transient loads and maximum random vibration loads may not occur at exactly the same time, so a root-sum-square method may be acceptable in some cases. When time-correlated environments are available, a time-consistent load combination is also acceptable.
Uncertainty factors remain a central part of the load analysis process. The standard explains that uncertainty is present in launch vehicle forcing functions, spacecraft/payload models, and coupled analyses, especially when there is limited flight history. Revision B clarifies that uncertainty factors should not be used as a substitute for factors of safety. Instead, they are applied to dynamic loads analysis results to account for model and forcing-function uncertainty, while structural factors of safety are applied separately according to the applicable structural design standard. As the model, design, and test correlation mature, the uncertainty factor may be reduced with approval.
Revision B adds a new pre-test analysis section for model validation. Before testing, the analyst must demonstrate an accurate mass representation of the test article using orthogonality checks with the reduced mass matrix and analytical mode shapes. The standard discusses self-orthogonality, pseudo-orthogonality, and cross-orthogonality checks. It also requires the off-diagonal terms of the self-orthogonality matrix to be less than 0.1 for all target/significant modes, with diagonal terms equal to 1.0. These checks help confirm that the reduced model is suitable for modal testing and correlation.
The testing and correlation requirements are also important for vibration engineers. Modal survey testing is used to validate the spacecraft or payload dynamic model so that it can accurately predict loads and deflections. The test should capture significant modes below the model upper-bound frequency, including primary bending, axial, torsional, and interface strain-energy modes as applicable. The standard also calls for sufficient instrumentation at boundary interfaces, including all six degrees of freedom when needed, and requires methods to identify nonlinearities during modal testing.
For practicing engineers, the main takeaway is that NASA-STD-5002B reinforces the connection between load analysis, dynamic model quality, uncertainty management, and test validation. A random vibration PSD or coupled loads result is only as useful as the model, forcing functions, damping assumptions, boundary conditions, and correlation evidence behind it. The revised standard gives clearer expectations for model fidelity, reduced-model checks, nonlinear hardware, load combinations, and pre-test verification.
See also:
Launch Vehicle Coupled Loads Analysis (CLA) Upper Frequencies
Low Frequency Structural Loads for Secondary Structures & Components
– Tom Irvine
