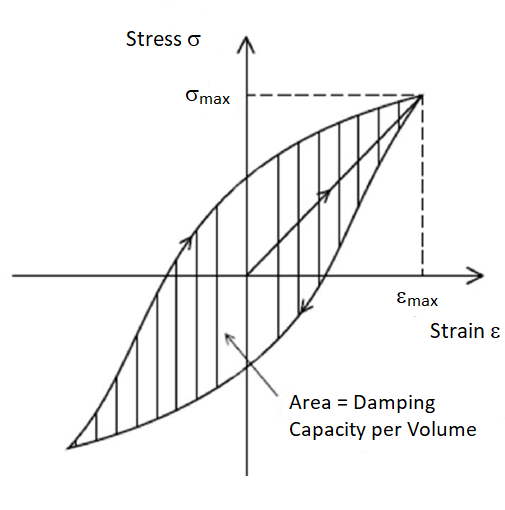

Internal friction and heat generation cause a deviation from perfect elasticity, resulting in the hysteresis loop in the stress-strain curve.
The damping capacity ψ is:
ψ = ΔW/W
where W is the initial strain energy and ΔW is the energy lost during one cycle of oscillation.

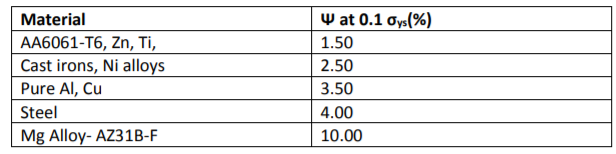

Some damping capacities of common materials are:

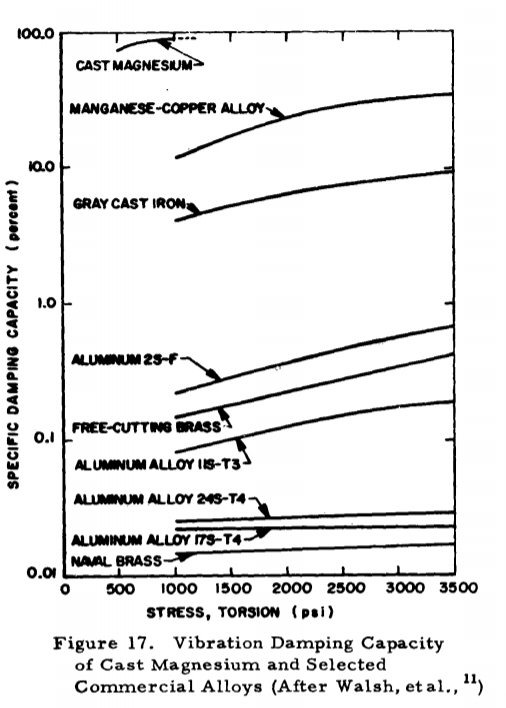

There is some tendency for damping capacity to increase with at higher stresses. Damping also depends on temperature, strain rate and other parameters.
References:
Maringer, Damping Capacities of Materials
See also: Damping References
– Tom Irvine
