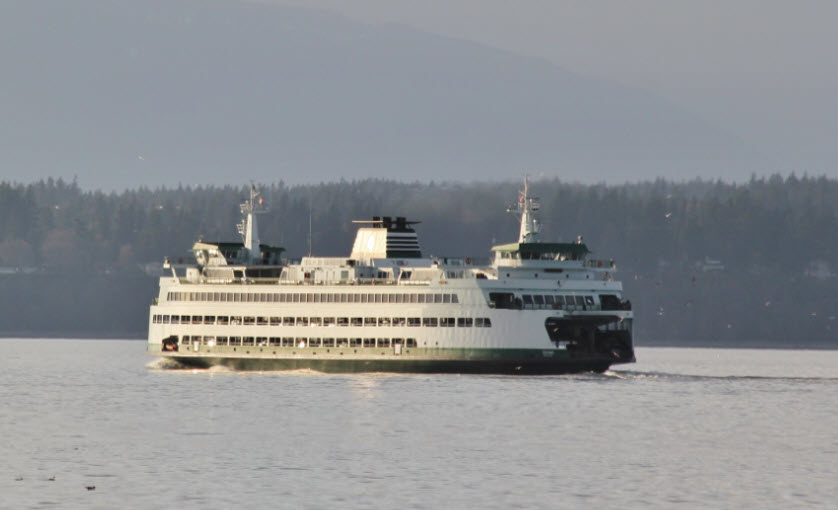

The MV Tacoma is a ferry that runs between Seattle and Bainbridge Island. MV stands for “motor vehicle” and is used to designate a ferry. The ferry’s size class is “Jumbo Mark II.”
The total engine power is 16,000 hp from 4 x EMD 16-710G Diesel-Electric engines. The maximum engine speed is 900 RPM or 15 Hz. There are two shafts with propellers. One each at the forward and aft ends of the ship.
There are plans to convert the engines to a hybrid diesel-battery system to reduce exhaust emissions. The Siemens Company will perform the modification.
I traveled on this ferry on September 6, 2021. I recorded the following vibration data using an accelerometer app on my Android Smartphone (Pixel 3 XL), which was placed on a small table between two seats on the passenger deck.

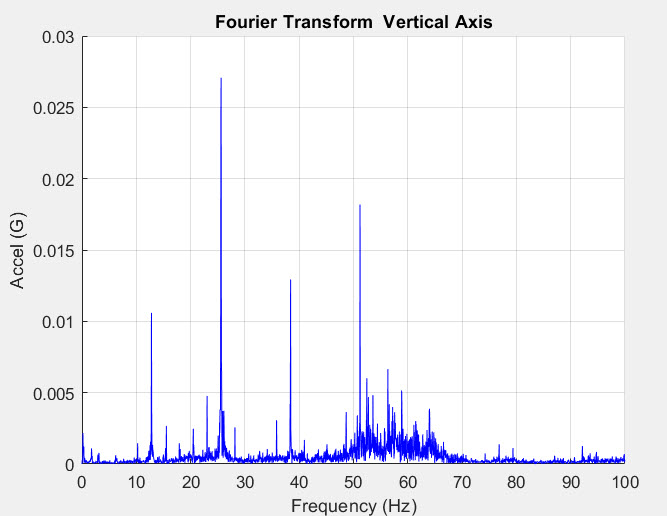

The Fourier transform has distinct spectral peaks at: 12.8, 25.6, 38.4, 51.2 Hz.
The 12.8 Hz peak is due to the engine shaft speed at 85% of its maximum speed. The shaft speed is set to optimize fuel efficiency, minimize engine wear, etc. The three remaining frequencies are integer harmonics of 12.8 Hz. A number of lesser, unidentified peaks are also present.
The sample rate was 400 samples/sec. The Fourier transform was calculated over a 24-second duration.
The Fourier transform was calculate using the Vibrationdata Matlab GUI package
– Tom Irvine
