Embraer E190 Landing Shock

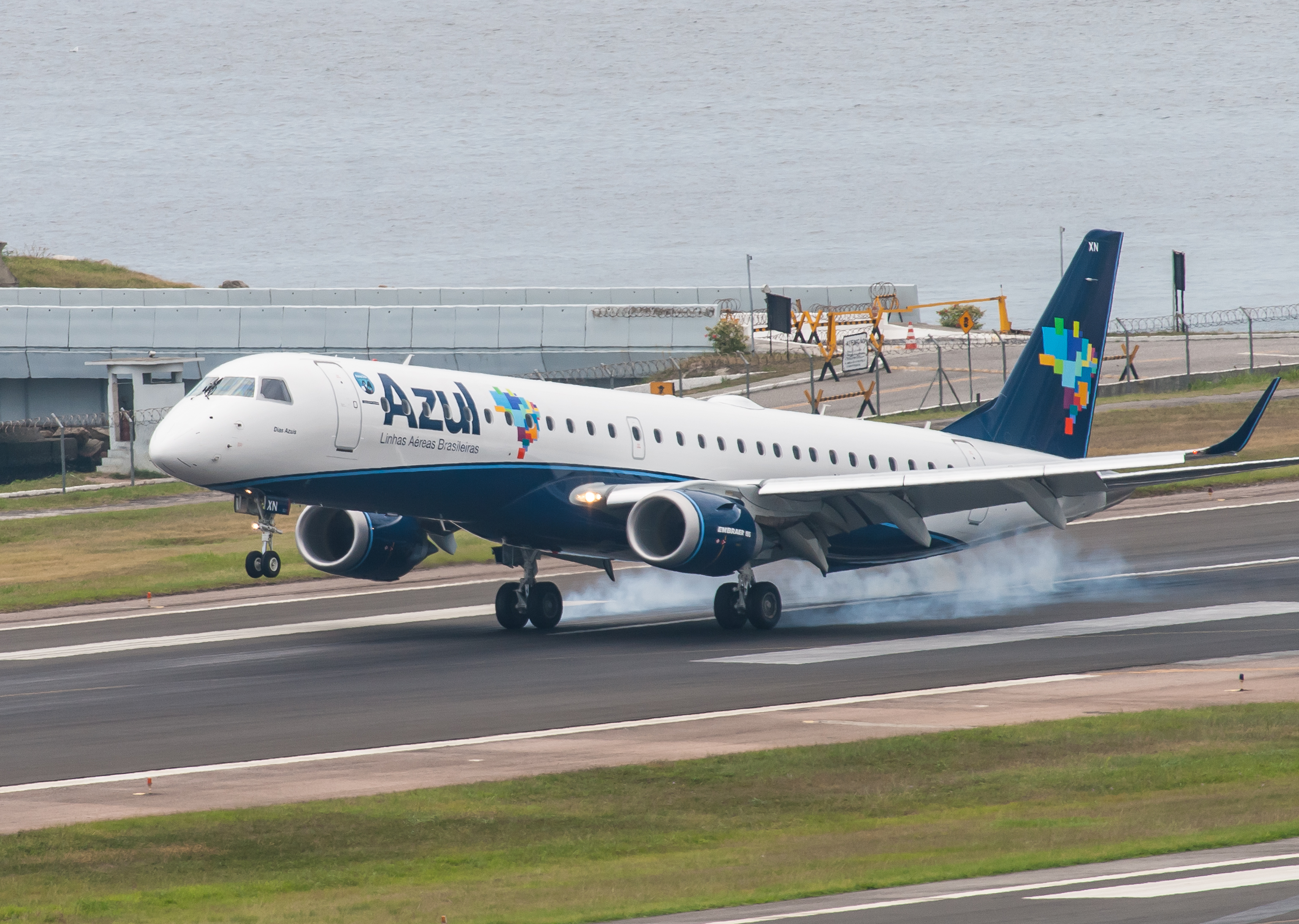

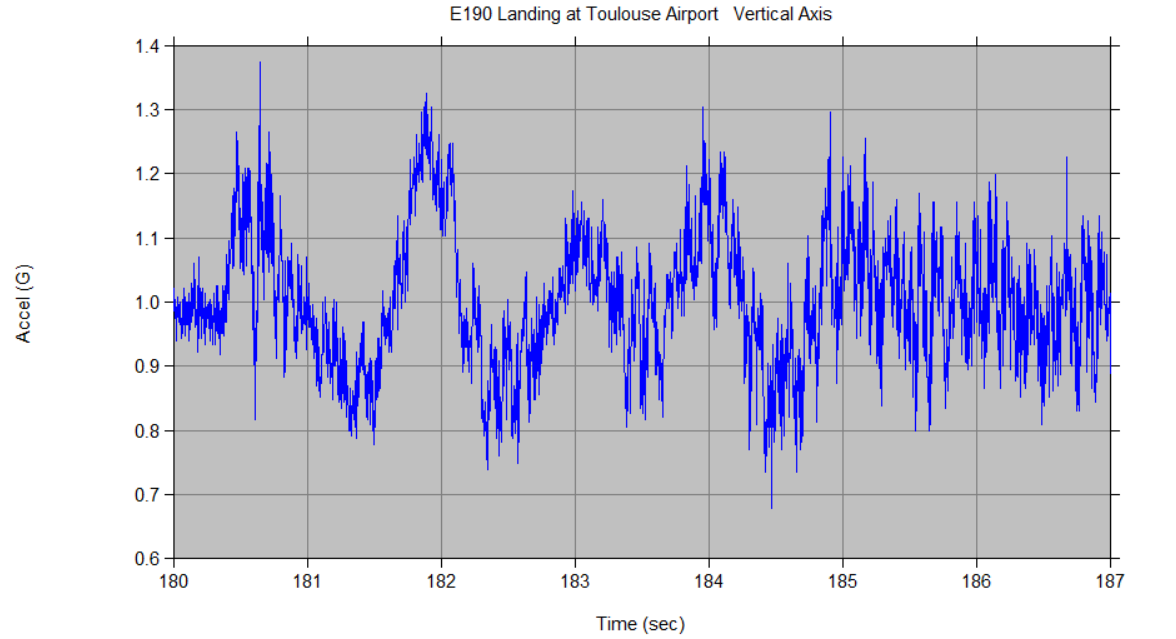

I recently flew as a passenger on a E190 similar to the one in the top image. The landing shock is shown in the bottom image. The data was recorded on a Slam Stick X, sampled at 400 samples/sec. The initial set of peaks have a frequency of about 0.9 Hz.

Matlab File: E190_landing_shock.mat

See also: Landing Shock

– Tom Irvine
