The plate is aluminum, 0.063 inch thick. The fixed edge lengths are 6 and 4 inches.

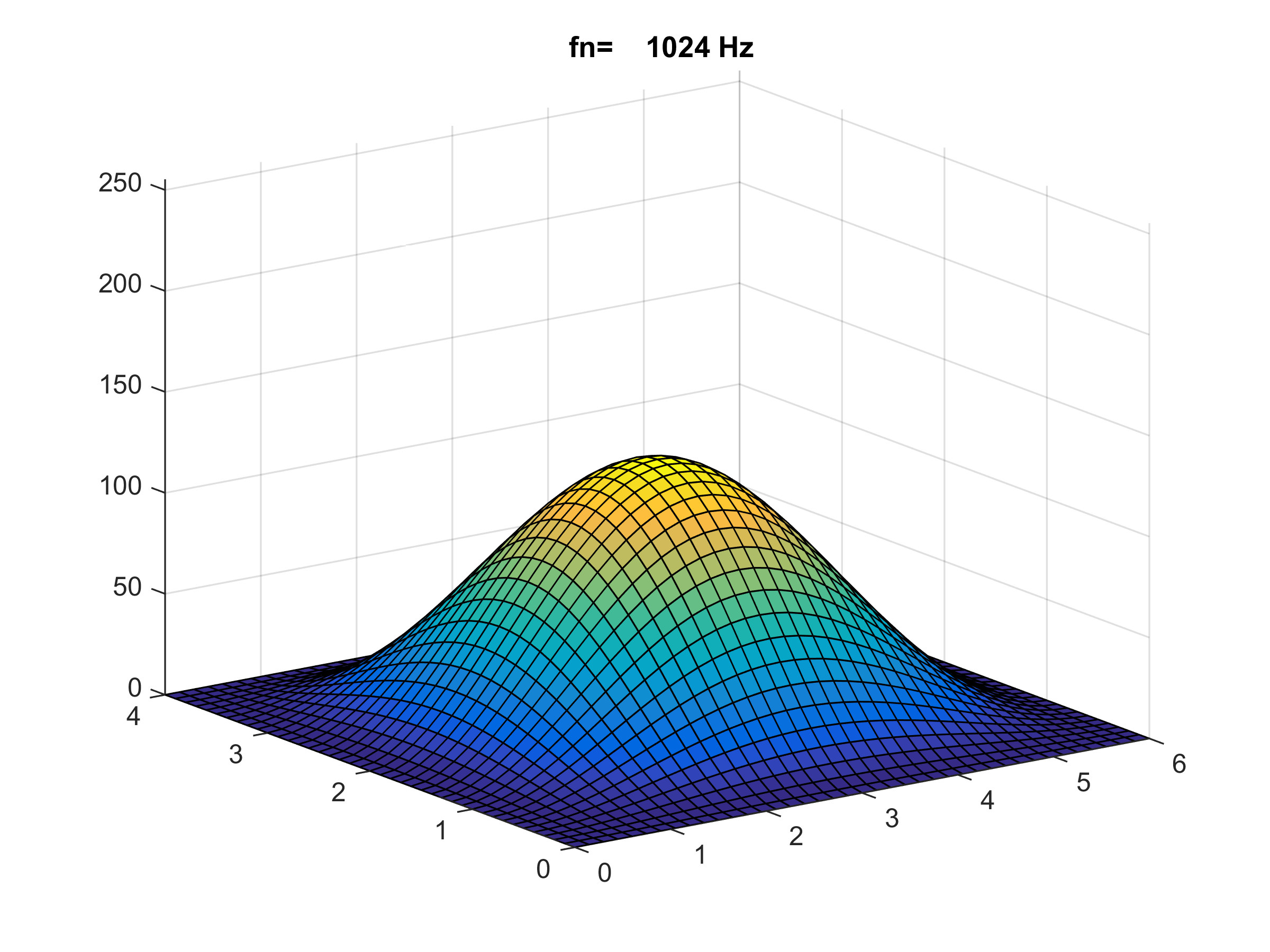

The vibration mode was calculated via the Rayleigh method using an assumed displacement function, as carried out via Matlab script: fixed_fixed_fixed_fixed_plate.zip
The method is given in: fixed_fixed_fixed_fixed_plate.pdf
See also: Vibrationdata Rectangular Plates
* * *
See also:
Natural Frequencies of a Flat, Rectangular Plate, Finite Element Method
* * *
– Tom Irvine
